Features:
High Extinction Ratio & Stable Polarization
Precision slow-axis alignment ensures stable polarization-maintaining performance, with extinction ratio ≥20 dB standard and ≥23 dB for high-grade versions.
Low Insertion Loss & High Return Loss
Advanced V-groove alignment and endface polishing deliver insertion loss ≤0.50 dB and return loss ≥60 dB with APC termination, ensuring efficient and stable optical transmission.

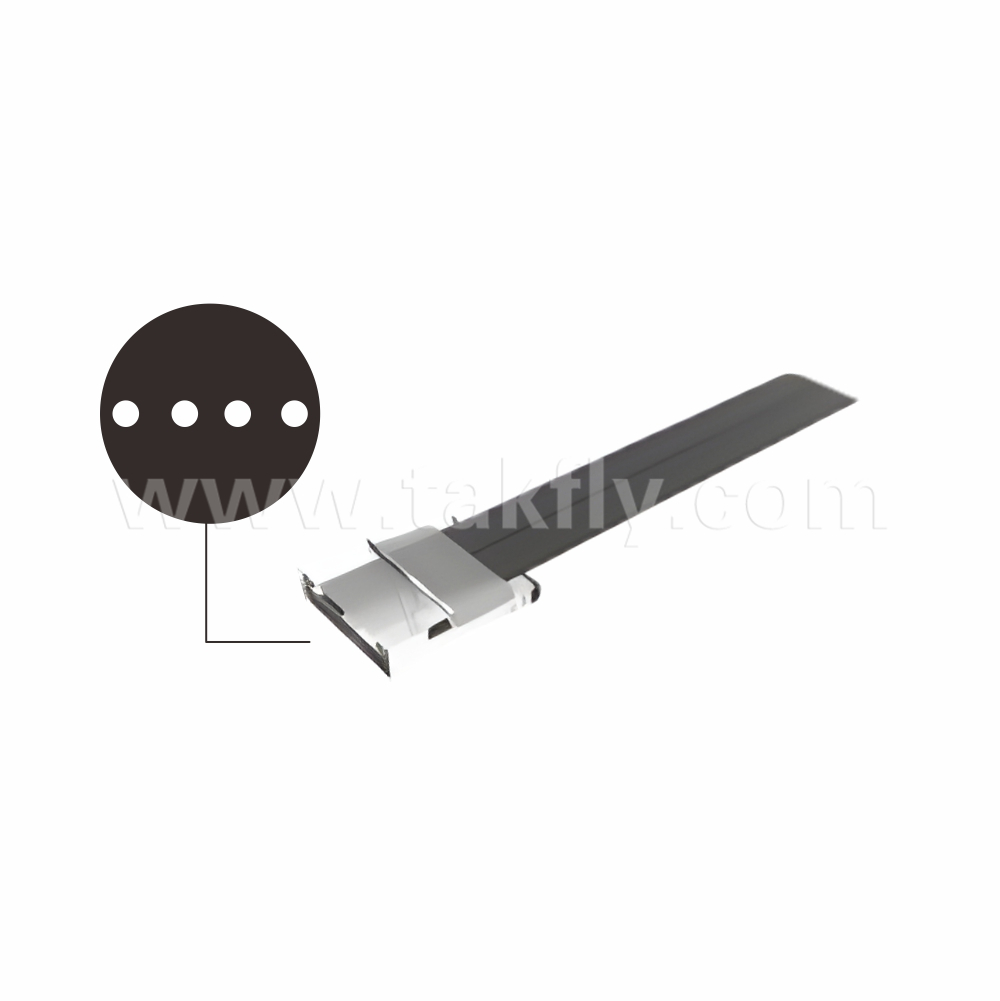

Precision Fiber Array Alignment
The V-groove structure provides ±0.5 µm alignment accuracy, enabling consistent coupling performance for silicon photonics, photonic chips, and PM optical modules.
Flexible High-Density Customization
Supports customization of channel count, fiber type, wavelength, fiber pitch, polish angle, connector type, key orientation, cable type, and cable length.
Reliable Packaging
Epoxy-bonded V-groove package with optional hermetic design provides high mechanical stability and environmental reliability.
Available Configurations
Bare PM fiber array
PM fiber array with FC/APC, FC/PC, LC/APC, SC/APC connectors
PM fiber array with MTP/MPO transition
High-channel-count PM FA up to 64 channels
Custom slow-axis alignment and polarization key orientation
Applications:
Coherent optical communication modules
Silicon photonics coupling and CPO (Co-Packaged Optics)
Fiber optic gyroscopes
LiDAR systems
Quantum photonics and microwave photonics
Polarization-sensitive fiber sensing
High-channel-count optical test and measurement
400G / 800G / 1.6T optical interconnects
For detailed technical specifications or customized solutions, please contact our technical team.
