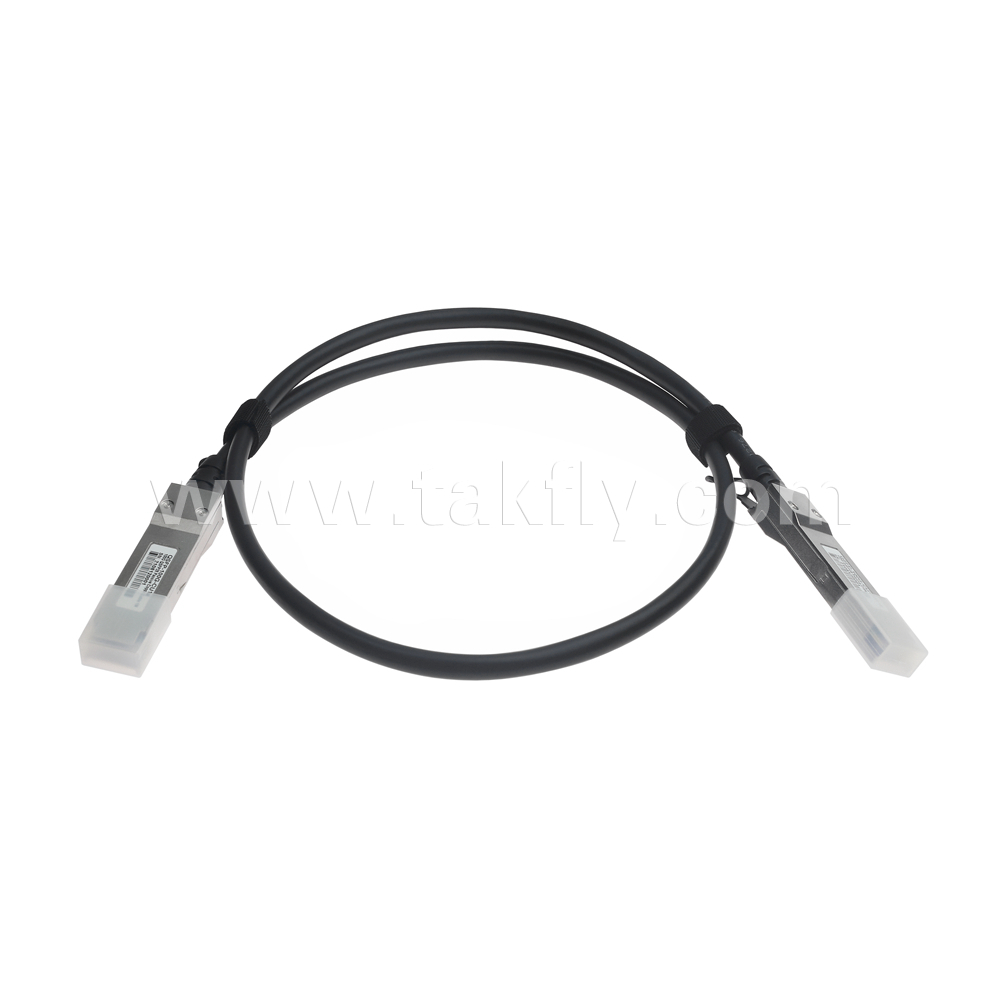

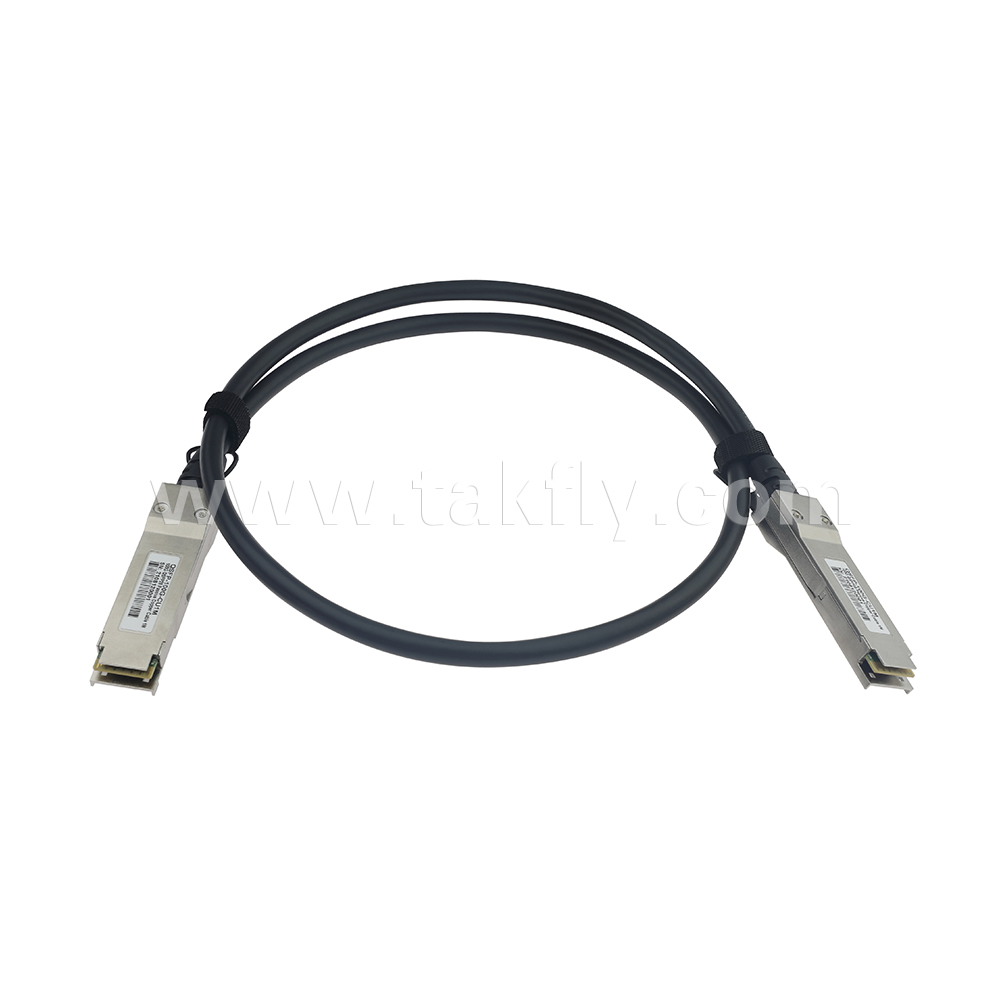

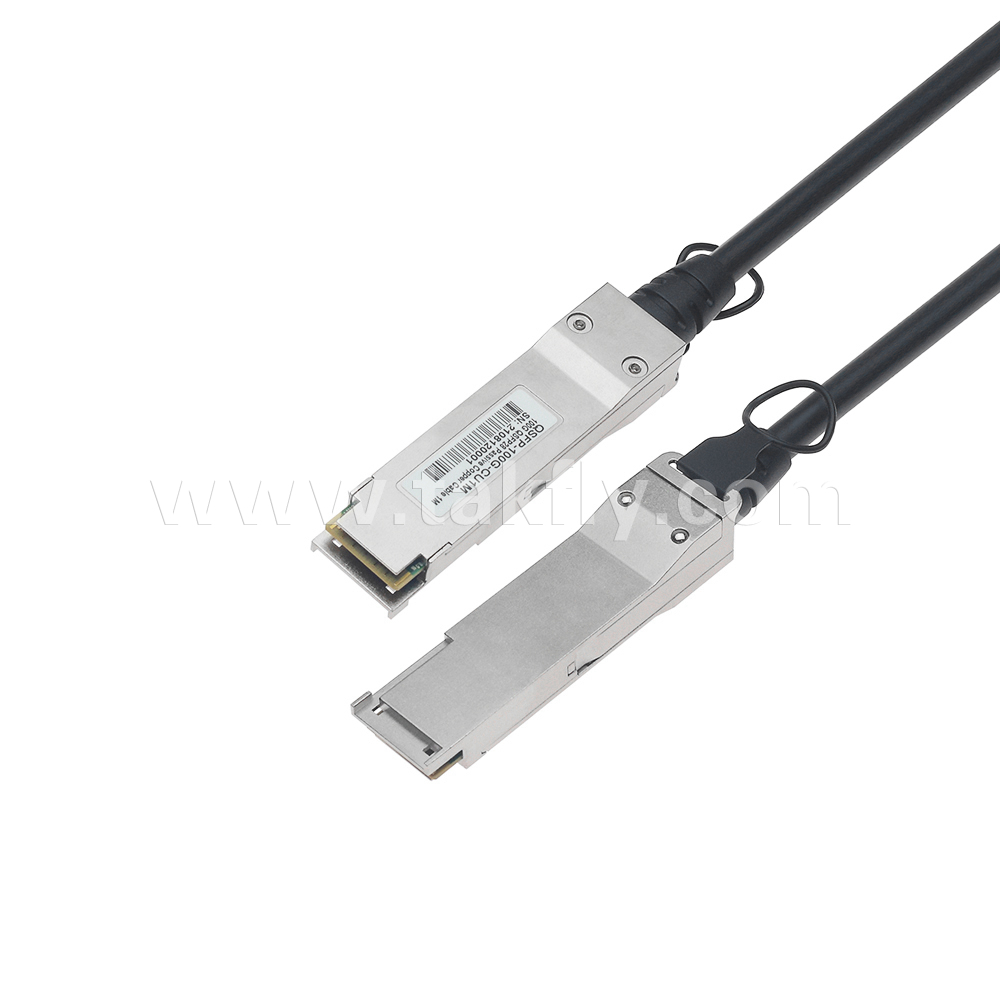

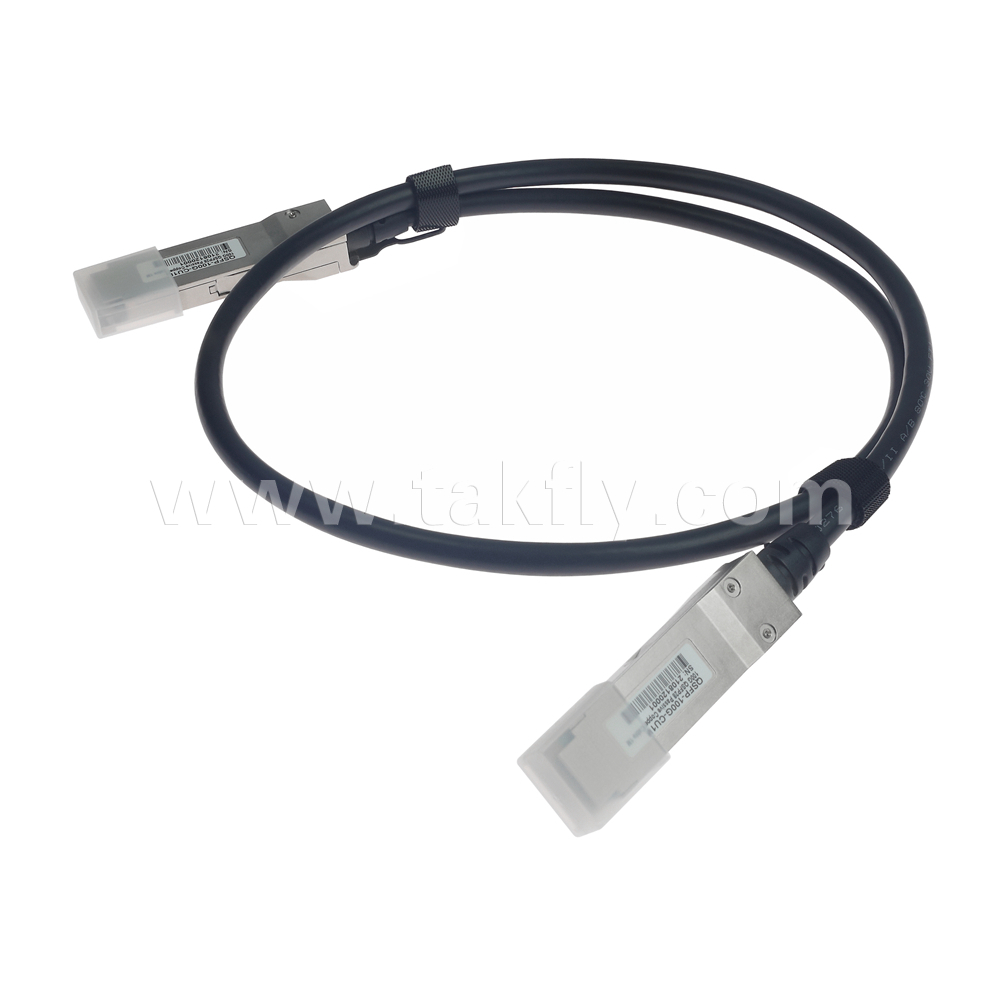

100G QSFP28 Direct Attach Passive Copper Cables

The 100G QSFP28 passive cable assembly products, based on 4 x25G or 4 x28G structure, the product can well satisfy the next generation 100G switches, servers, routers and other products of application requirements.QSFP28 cable adopts optimized design to reduce crosstalk and insertion loss, excellent signal integrity, fully conforms to the next generation 100G Ethernet and Infiniband EDR standards.

For more details, pls feel free to contact us.

Share to:

Features

4-channel full-duplex passive copper cable

Data rate up to 100Gbps (4x 25Gbps)

SFF-8665 compliant QSFP28 connectors

SFF-8636 compliant I2C management interface

IEEE 802.3bj 100GBASE-CR4 compliant

Copper link length up to 5m (passive limiting)

Hot Pluggable

Low power consumption

Excellent signal integrity, low insertion loss and low crosstalk

Operating case temperature range: 0°C to +70°C

Single 3.3V supply voltage

RoHS compliant

Application

100G Ethernet 100GBASE-CR4

InfiniBand 4x EDR

SAS, servers, hubs, switches and routers

Data Center
