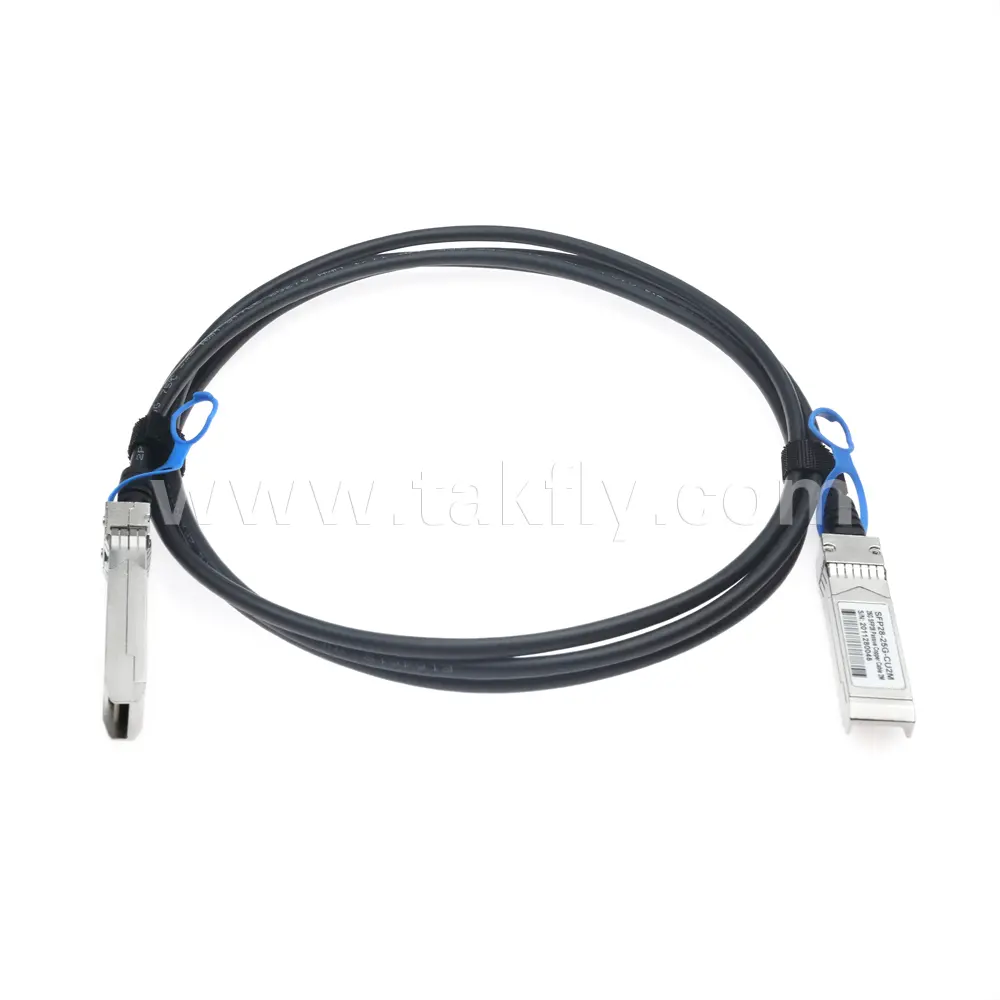

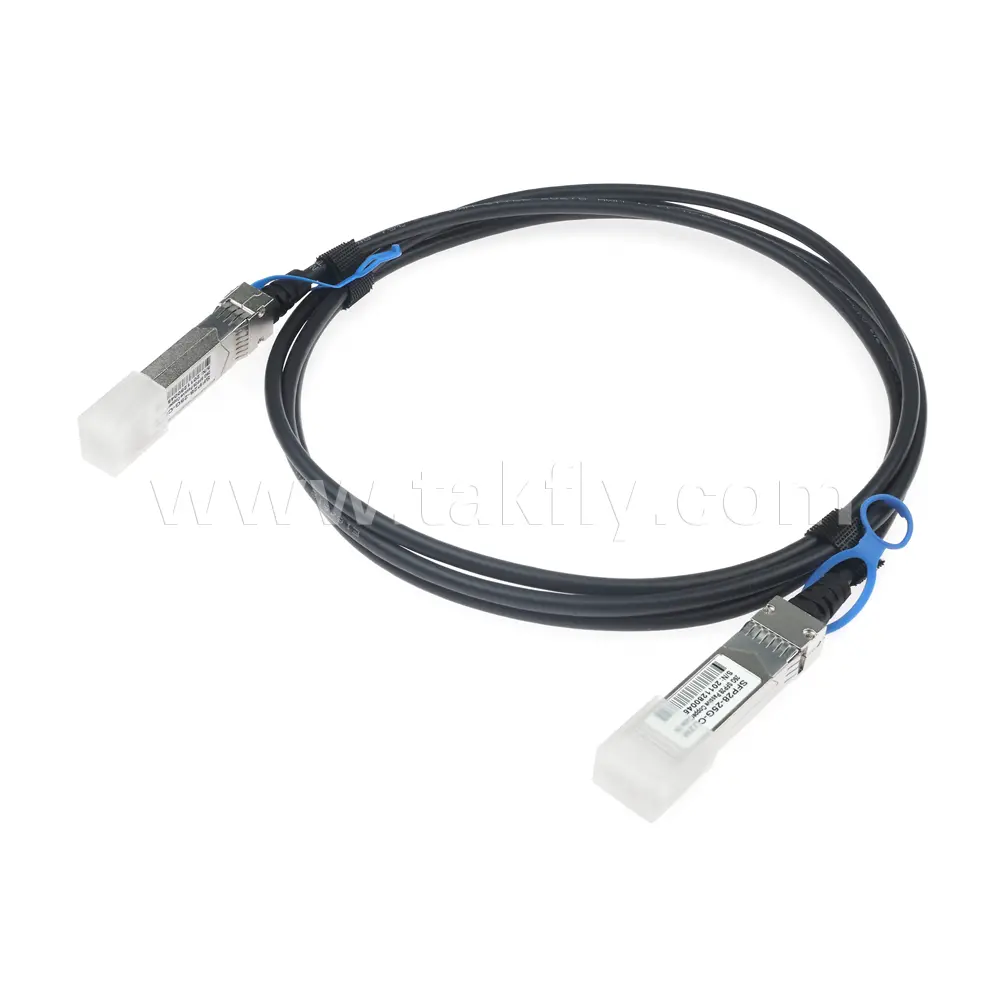

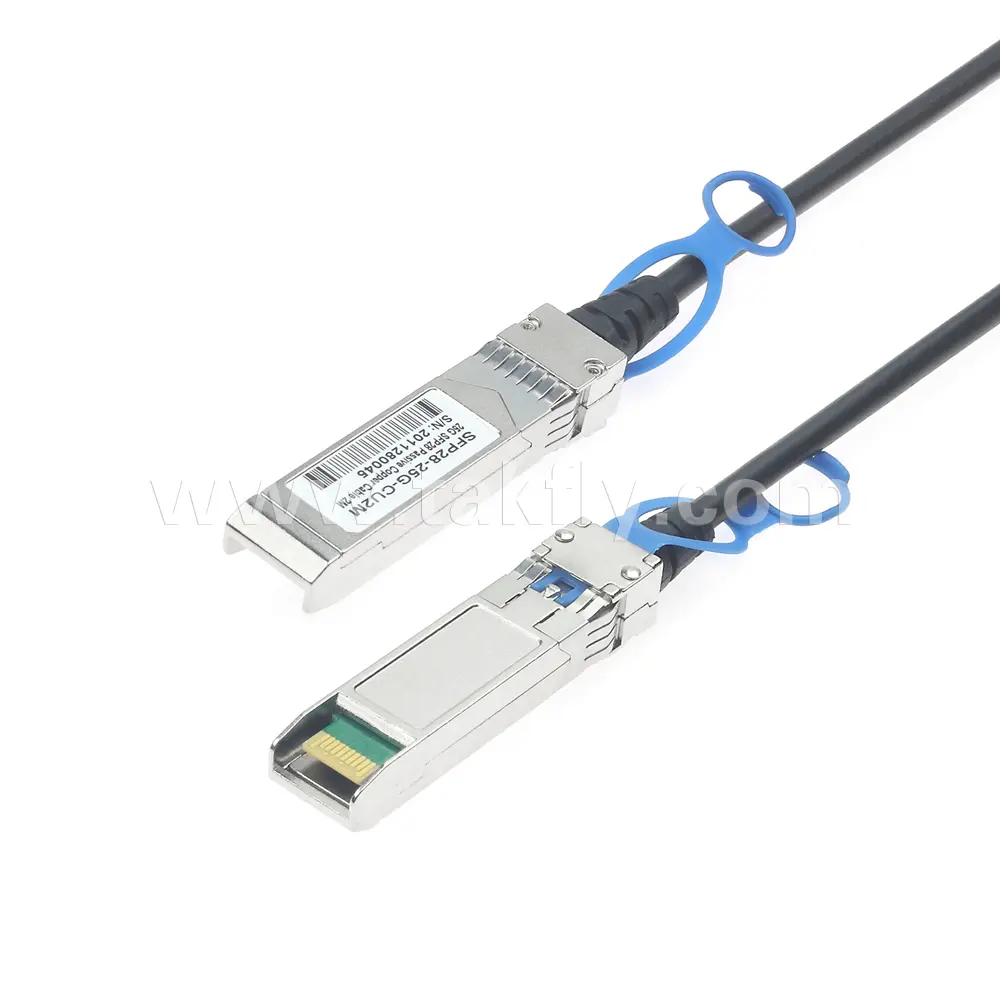

25G SFP28 Direct Attach Passive Copper Cables

The SFP28 direct attach passive copper cable assemblies are a high-performance and cost-effective I/O solution for 25G Ethernet applications. The SFP28 copper cables allow hardware manufactures to achieve high port density, configurability and utilization at a very low cost and reduced power budget. The high speed cable assemblies meet and exceed 25G Ethernet industry standard requirements for performance and reliability.

For more details, pls feel free to contact us.

Share to:

Features

  • Data rate up to 25.78125Gbps
  • Length up to 5m
  • Hot-pluggable SFP+ 20PIN footprint
  • Improved Pluggable Form-factor (IPF) compliant for
  • enhanced EMI/EMC performance
  • Compatible to SFP28 MSA
  • Compatible to SFF-8402 and SFF-8432
  • Power consumption <0.1 W
  • Operating case temperature range 0°C to +70°C
  • RoHS-6 compliant (lead free)

High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers

Switched fabric I/O such as ultra high bandwidth switches and routers

Data center cabling infrastructure

High density connections between networking equipment
