High Power Pump Laser Protector

Pump Laser Protector is designed to block the unwanted back-reflected optical energies that damage the coating or chip of a pump laser while allows maximum transmission of fiber-coupled pump laser diode.

For more details, pls feel free to contact us.

Share to:

Features

1.Low insertion loss

2.High return loss

3.High stability and reliability

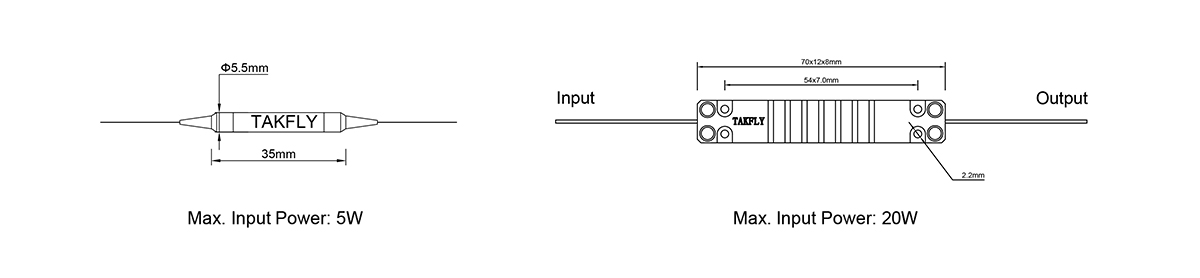

Structure Diagram

特写1

特写2

1.Fiber optic amplifiers

2.Pumped laser

3.Q-Switched Laser
