1064nm High Power Optical Isolator (Faraday Based, 2W)

1064nm 2w optical isolator is based on Faraday rotation effect to break the reciprocity of light transmission, so as to achieve the purpose of forward light passing and reverse light isolation. The specific Faraday optical rotation materials utilize for achieving high isolation and improving the efficiency of light transmission.

For more details, pls feel free to contact us.

Share to:

Features

1.Low Insertion Loss

2.High Return Loss

3.High Isolation

4.High Stability and Reliability

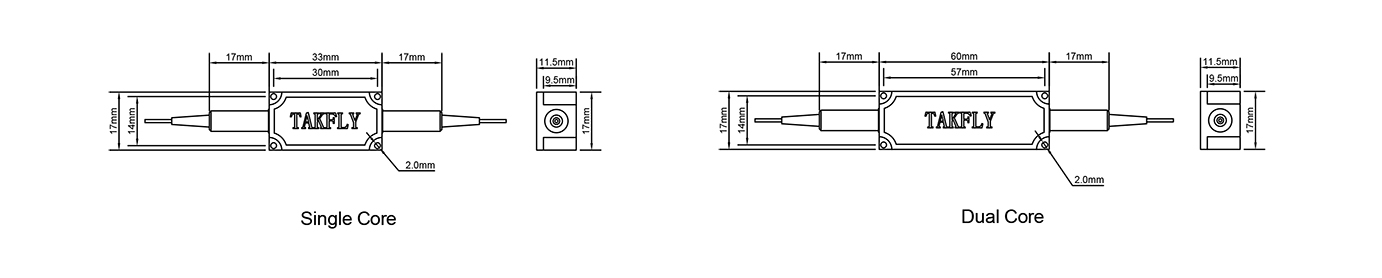

Structure Diagram

特写1

特写2

1.Fiber Amplifier

2.Testing Instrument

3.MOPA Fiber Laser

4.Fiber Laser
