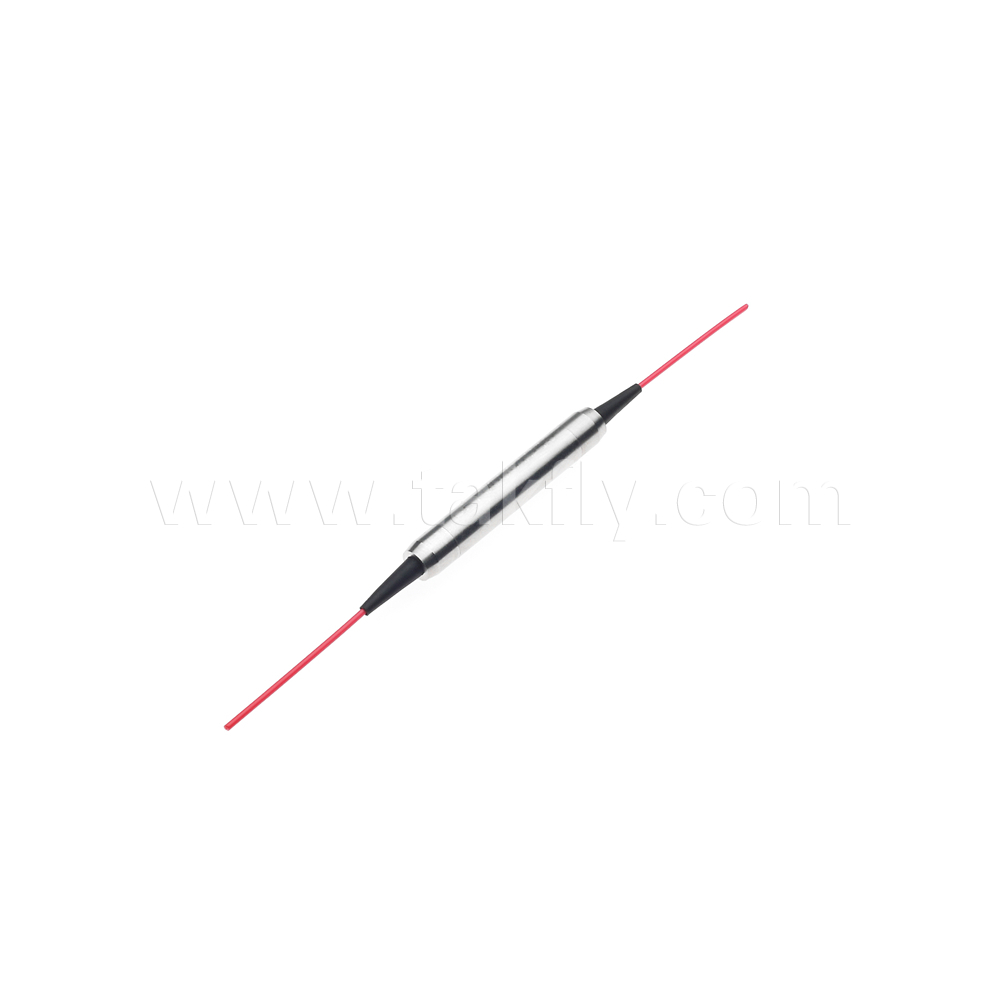

PM Isolator (1310nm,1550nm, 2000nm)

The Polarization Maintaining Isolator is a two port micro-optic device built with PM panda fiber. The PM isolator features low insertion loss, high isolation, high extinction ratio and high reliability and stability. The device guides optical light in one direction and eliminates back reflection and back scattering in the reverse direction. The device can be built with bare fiber, or 900um jacket cable. Different wavelength of 1310nm, 1550nm, 2000nm, etc. are all available.

For more details, pls feel free to contact us.

Share to:

Features

1.Low Insertion Loss

2.High Return Loss

3.High Extinction Ratio

4.High Isolation

5.High Stability and Reliability

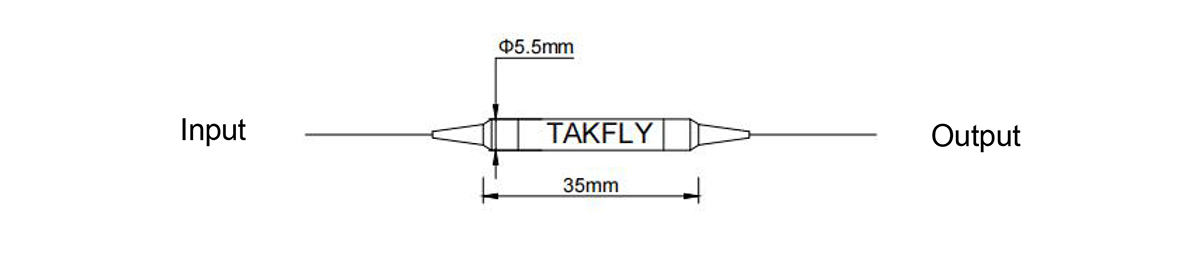

Structure Diagram

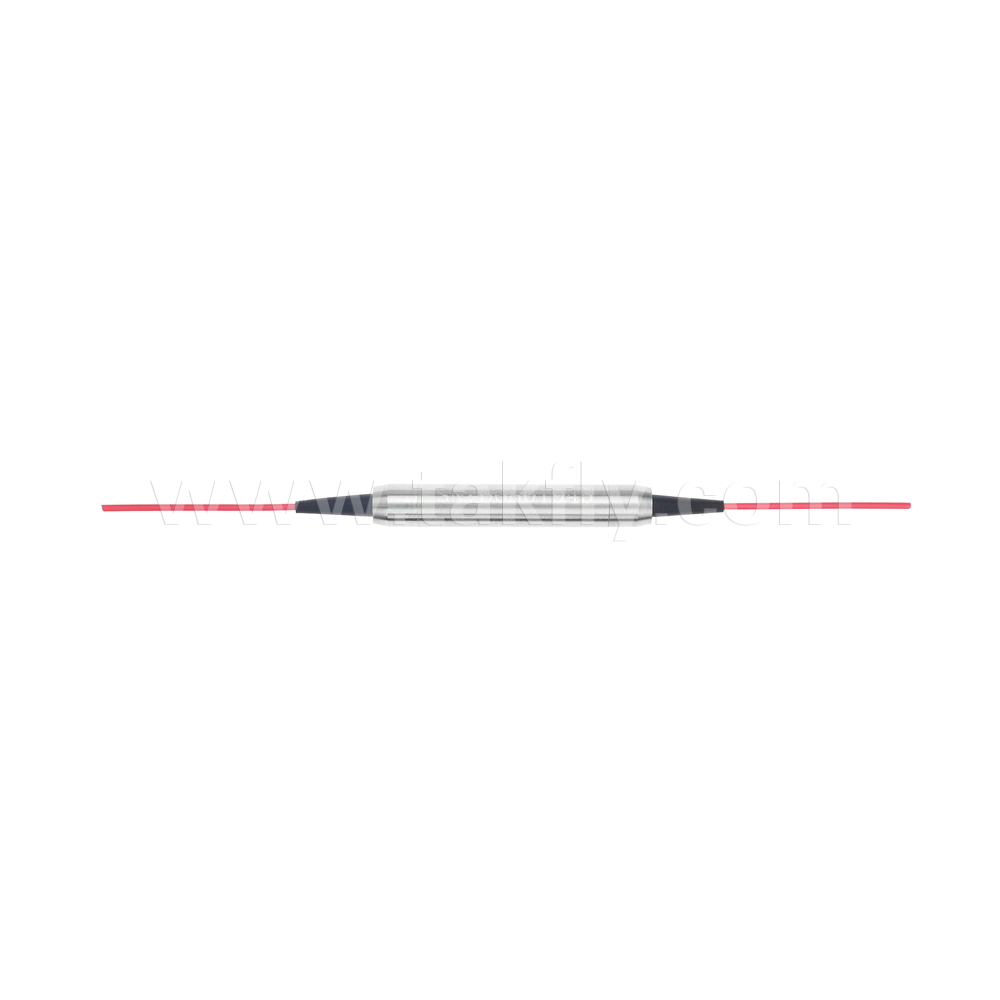

特写1

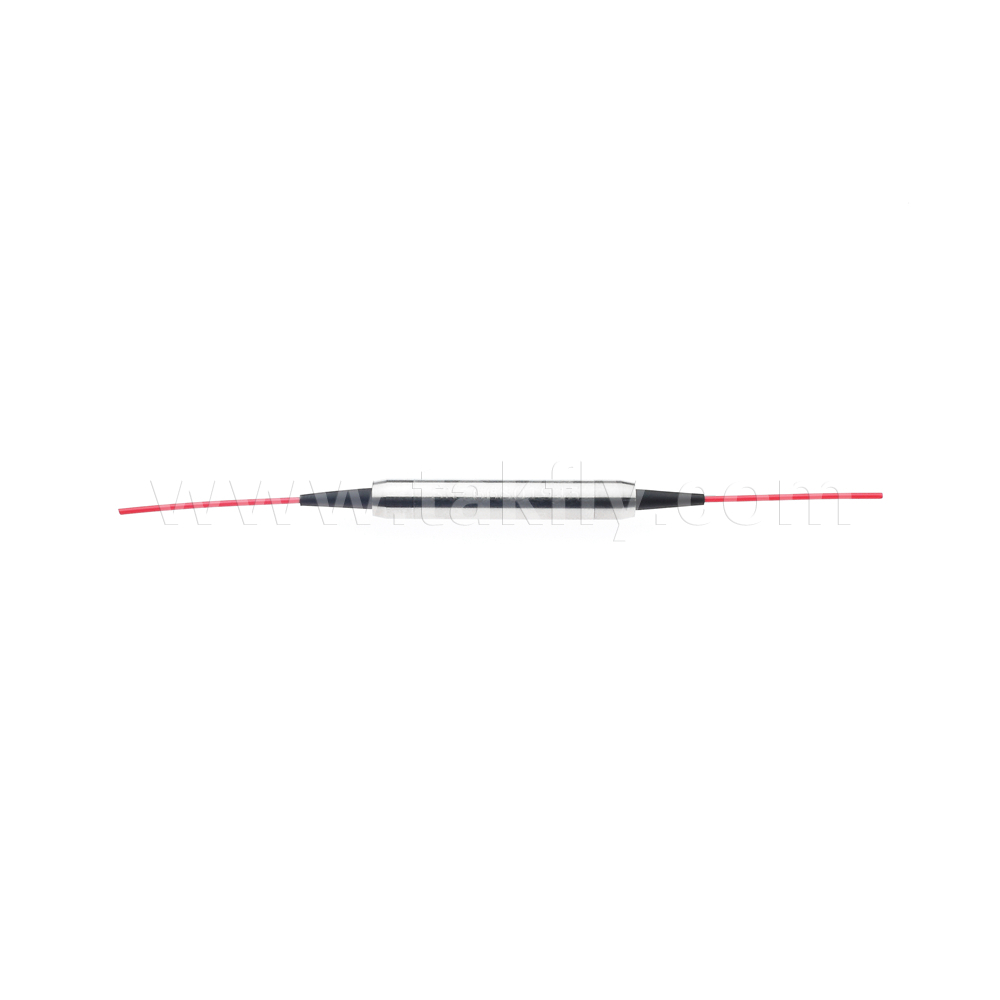

特写2

1.Communication Systems

2.Test System

3.Optical Fiber Sensor

4.Research
