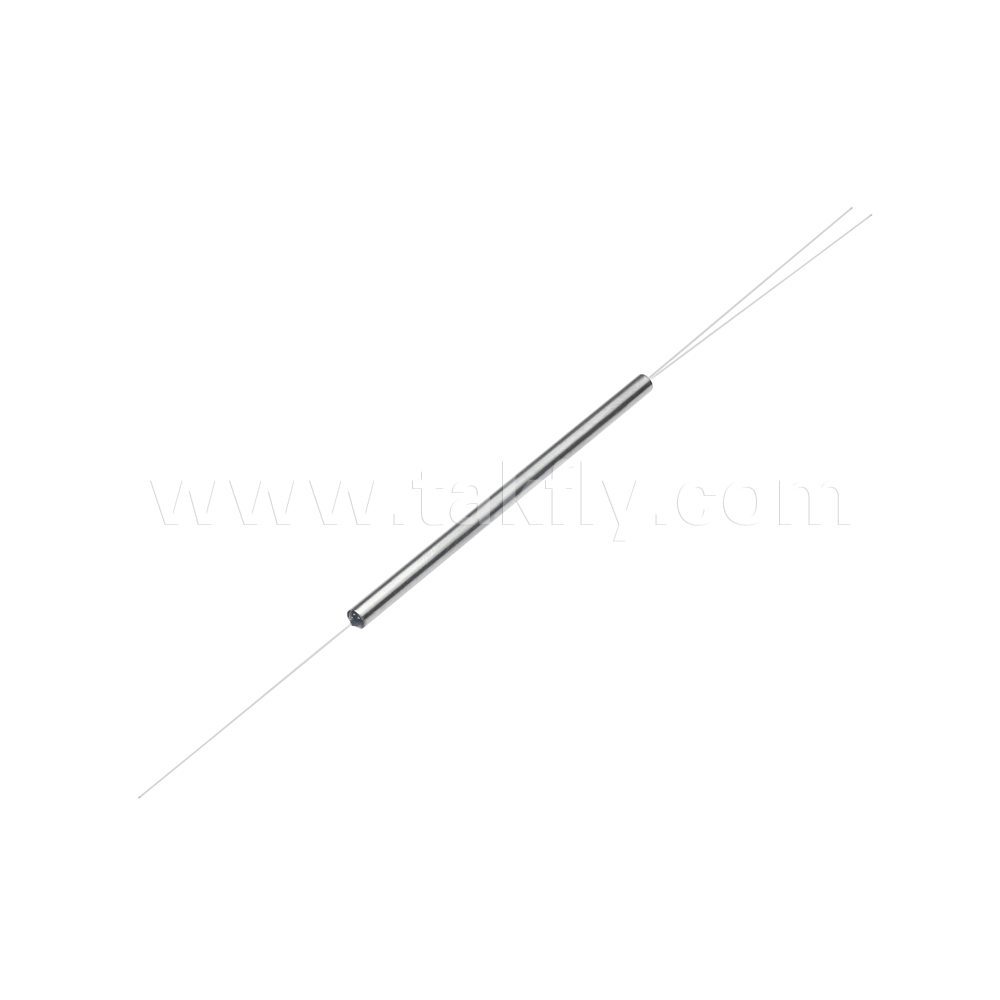

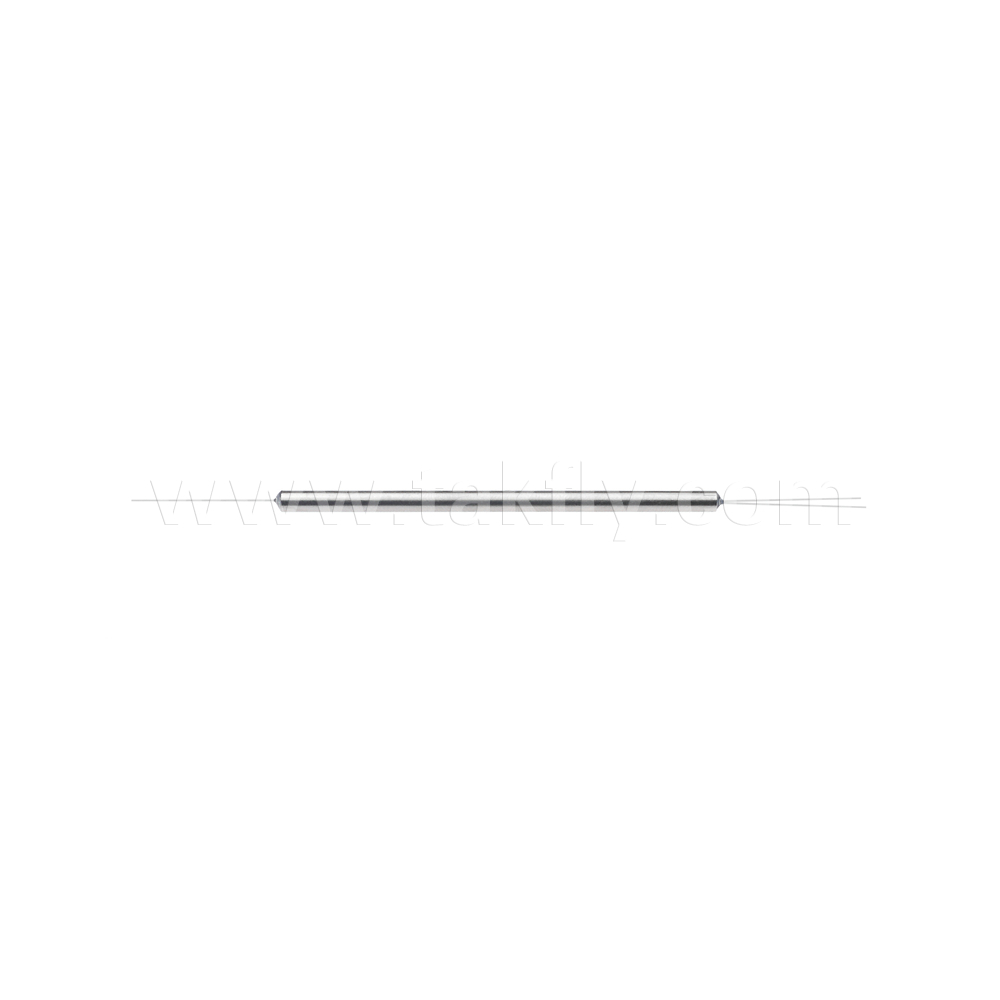

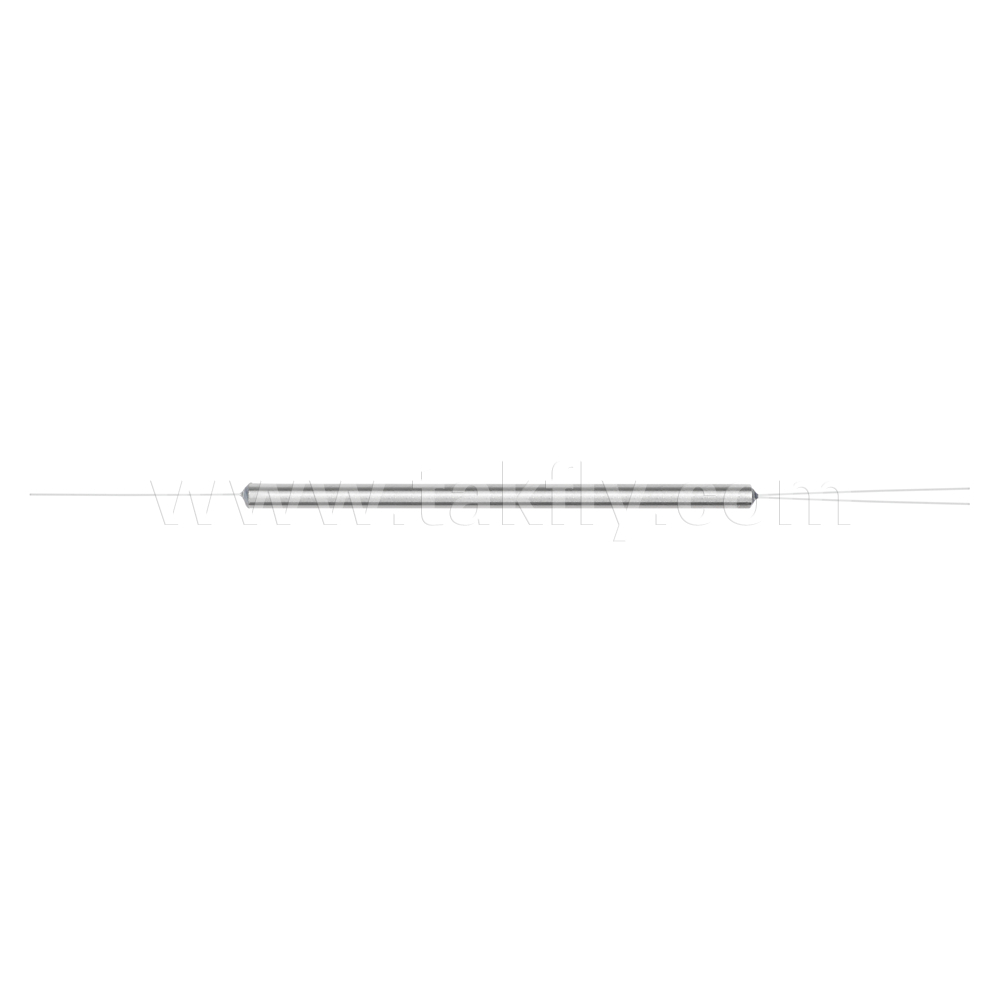

Fused Type PM Fiber WDM

Takfly uses unique fusing technique and polarization maintaining fiber to build the 980/1064nm, 980/1550nm and 1064/1550nm polarization maintaining fused WDM. It features low excess loss, small size and high polarization extinction ratio. PM fused WDM is widely used for fiber laser, optical sensors and optical gyro.

For more details, pls feel free to contact us.

Share to:

Features

1.High Extinction Ratio

2.High Isolation

3.Low Insertion Loss

4.High Stability & Reliability

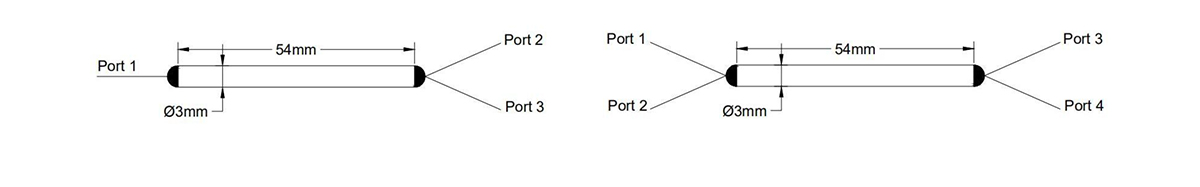

Structure Diagram

特写1

1.Test Instrument

2.Communication System

3.Fiber Amplifier

4.Fiber Sensor
