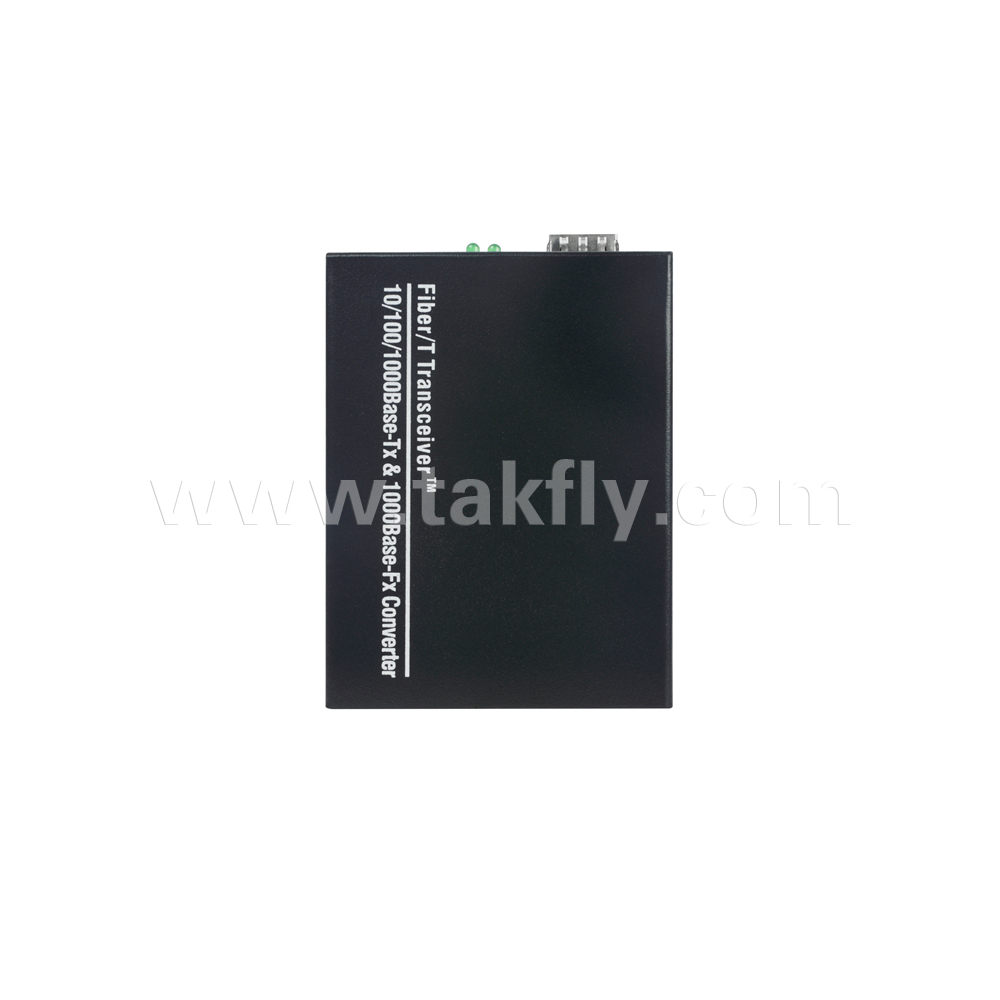

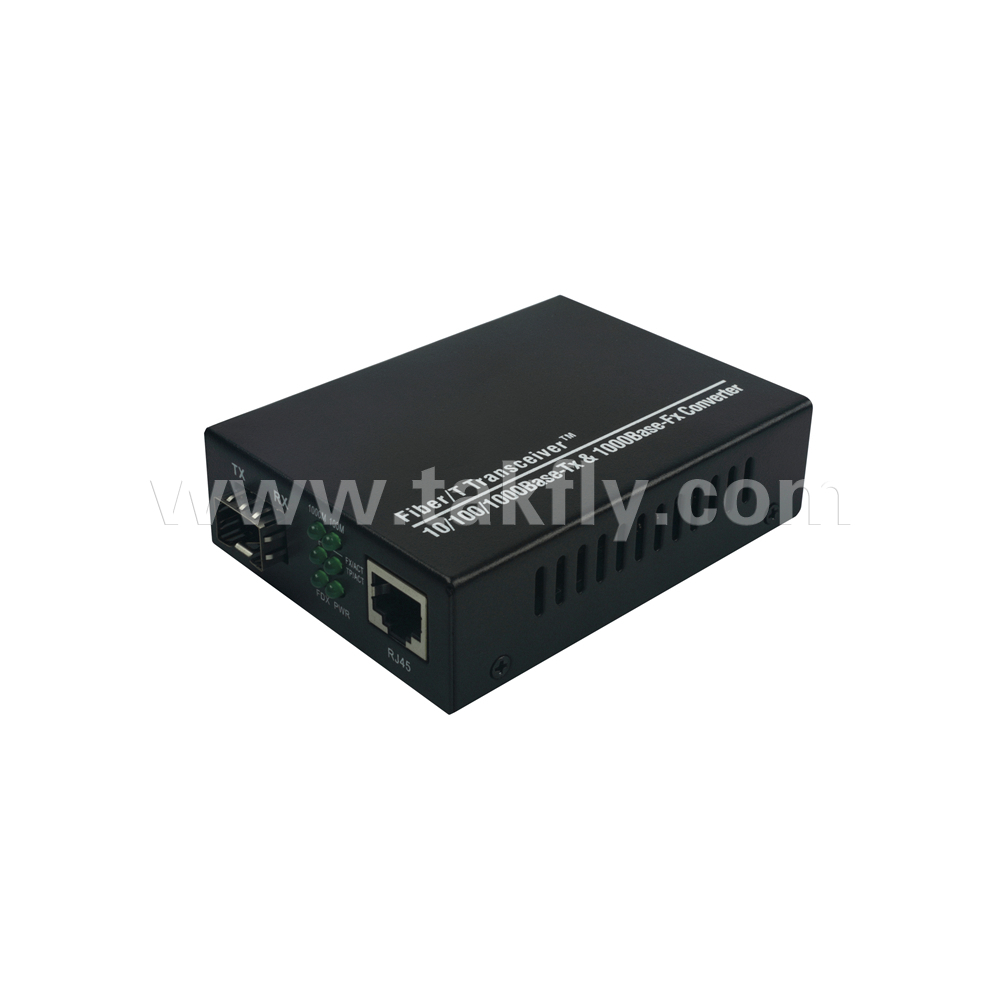

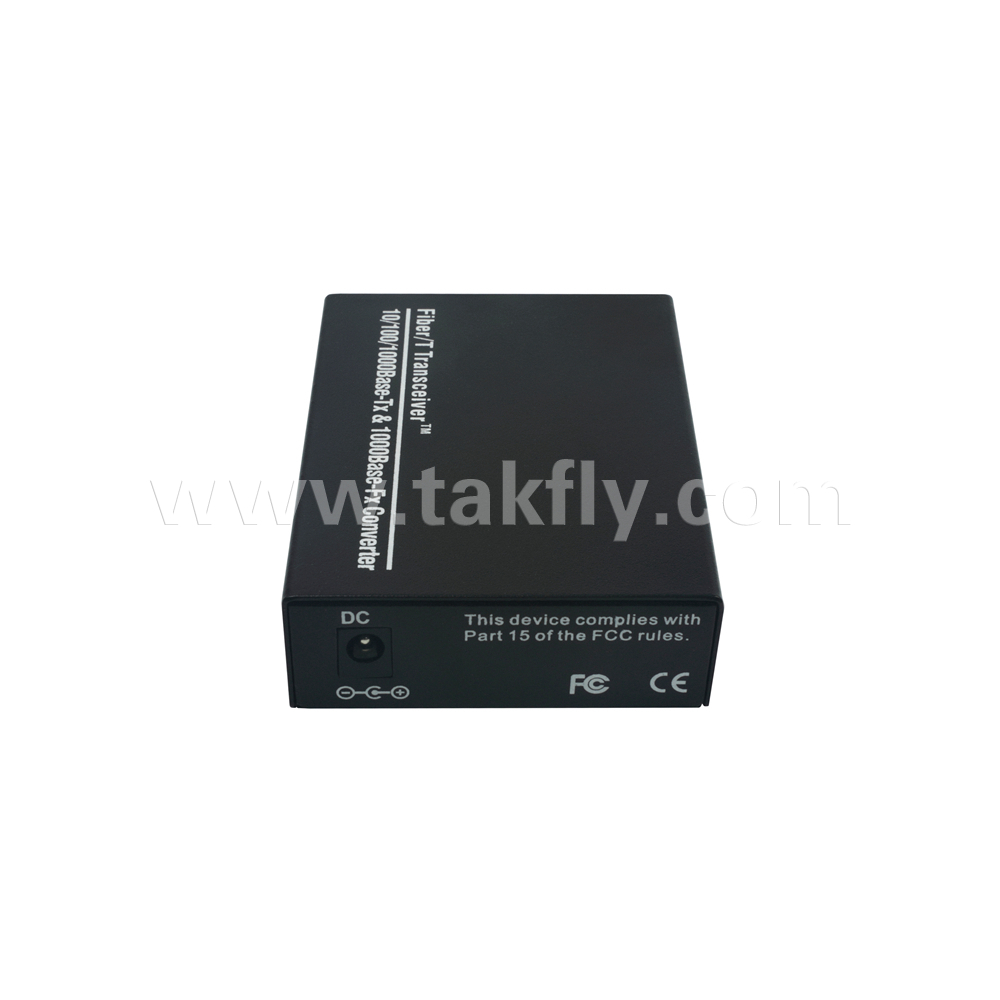

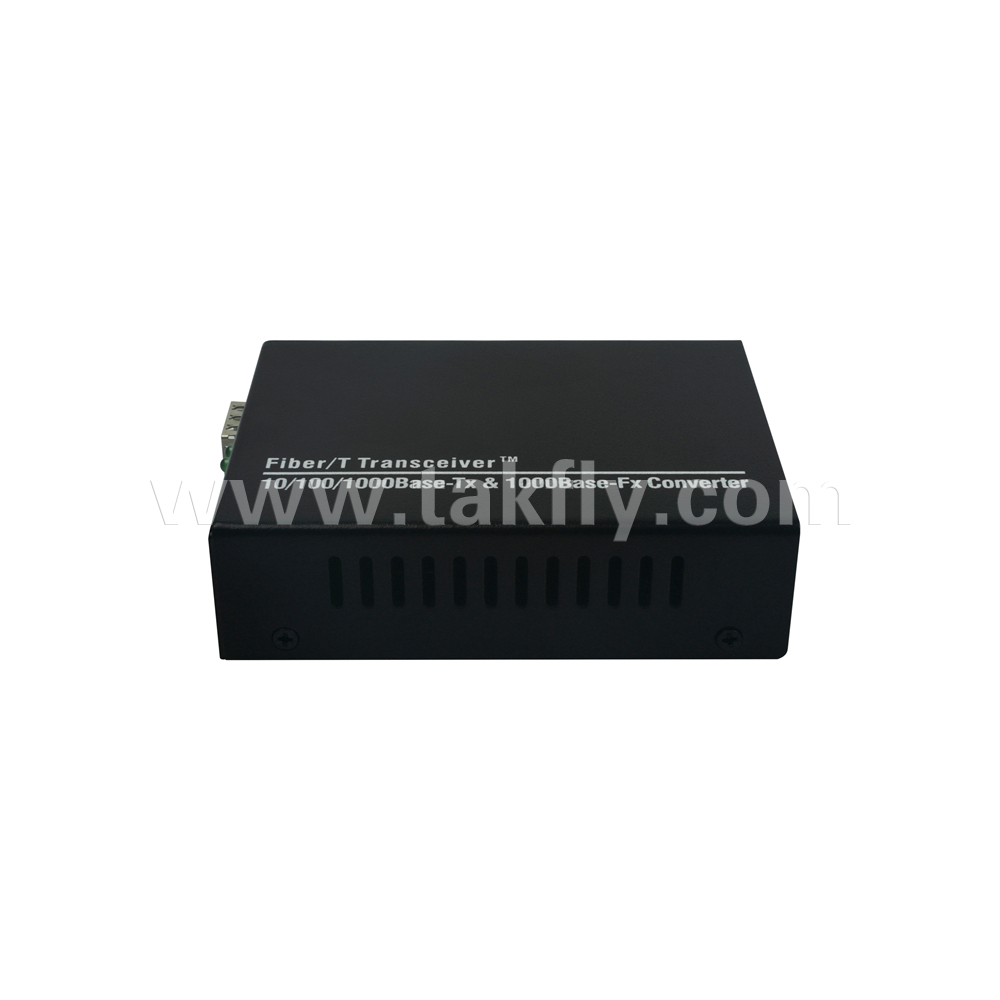

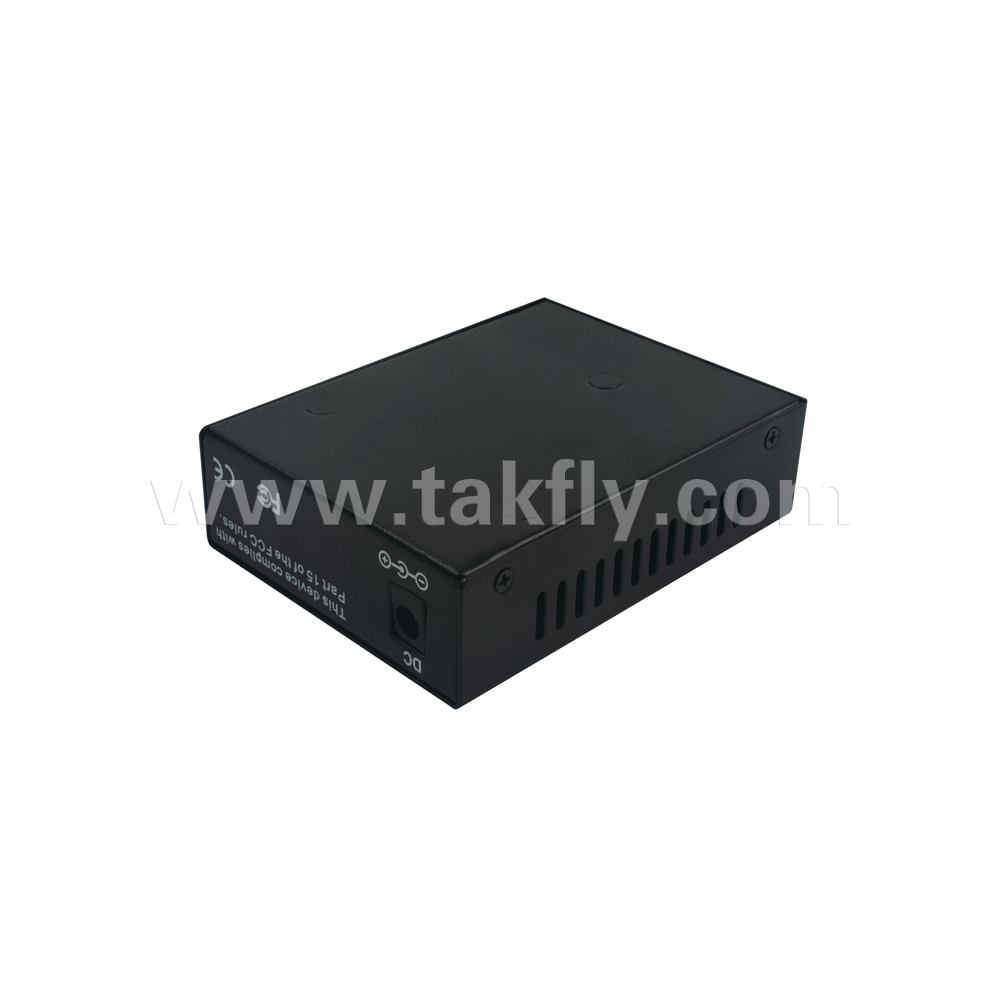

10/100/1000M Media Converter

With the rapid development of technology, network transmission speeds have been continuously improving. From traditional 10Mbps to 100Mbps, and further to 1000Mbps, network transmission speeds have achieved a leapfrog upgrade. In this process, the 10/100/1000M Media Converter plays a crucial role. allowing various devices to adapt to different network environments and achieving high-speed, stable data transmission.

For more details, pls feel free to contact us.

Share to:

Advantages of 10/100/1000M Media Converter

(1) Conversion between auto-adaptation 10Base-T, 100Base-TX or 1000Base-T and 1000Base-SX/LX , full duplex 1000M working pattern.

(2) With distinct HIC solution, low-temperature-rise chip, no need of cooling system, realization of flow control,decrease of broadcast storm.

(3) With famous brand optical-electronic-integration module providing excellent optical and electrical properties to ensure reliable data transmission and long working life.

(4) Supporting broadcast filtering, address auto-learning and auto-updating, and store-and-forward operating mechanism.

(5) Supporting full-duplex flow control or half-duplex back pressure working pattern, along with Auto-negotiation.

(6) Supporting 9kbyte super data packet transmission By store and forwarder mode.

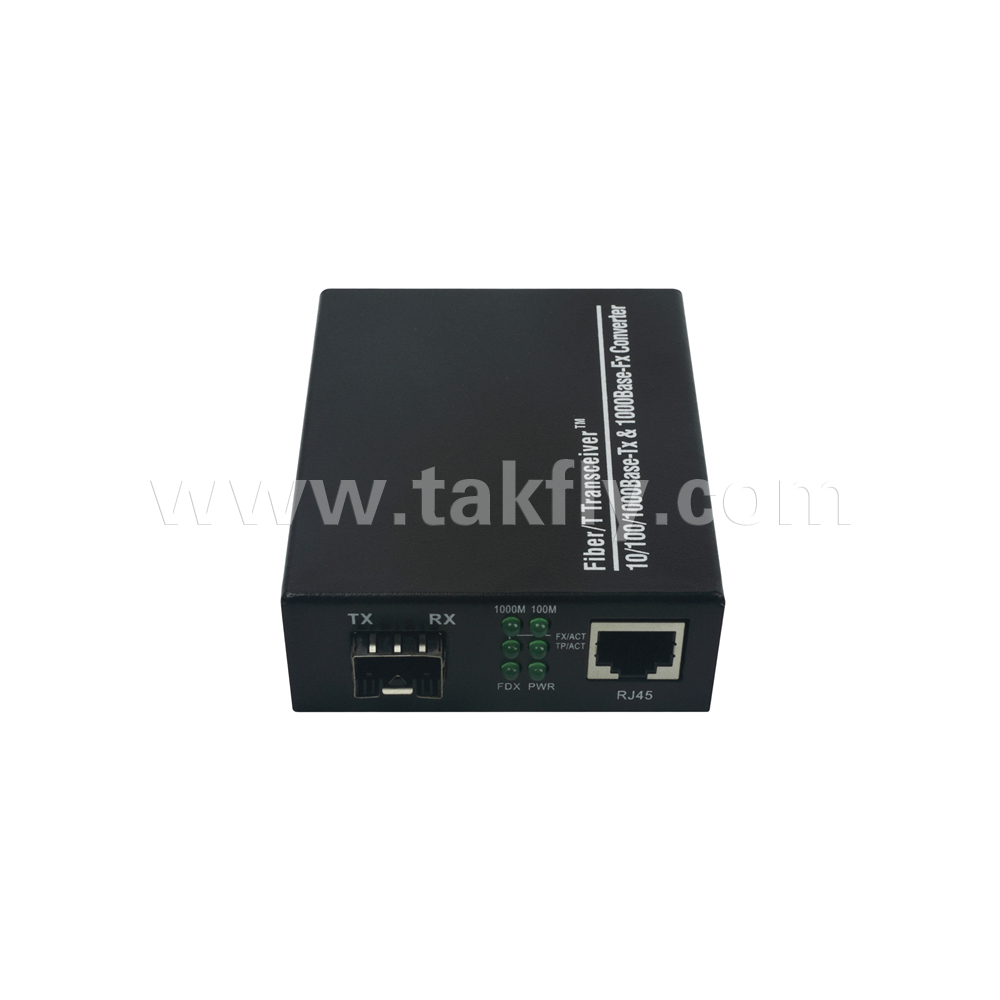

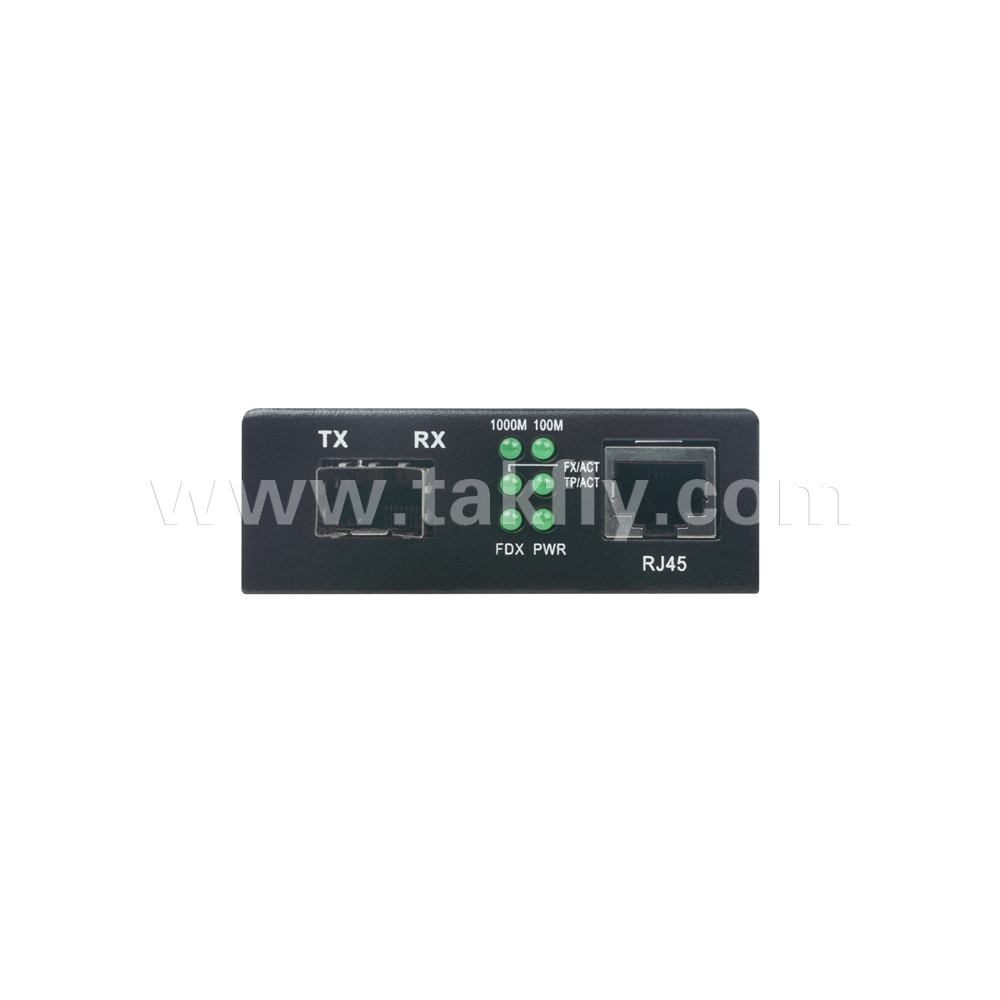

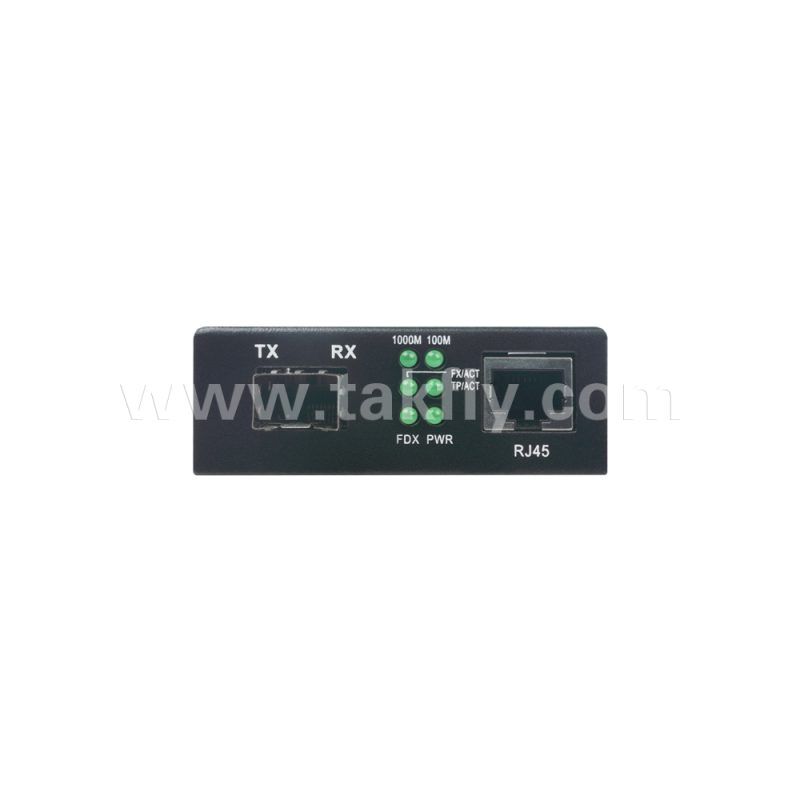

(7) Providing indicator lamps for link-loss, electrical and optical link diagnosing, dynamic data transmission and full/half duplex, data rate.

(8) With more than 50,000 hours MTBF, complying with telecom operating standard.

(9) Supporting choosing optical ports from dual fiber(MM),dual fiber(SM),single fiber(SM).

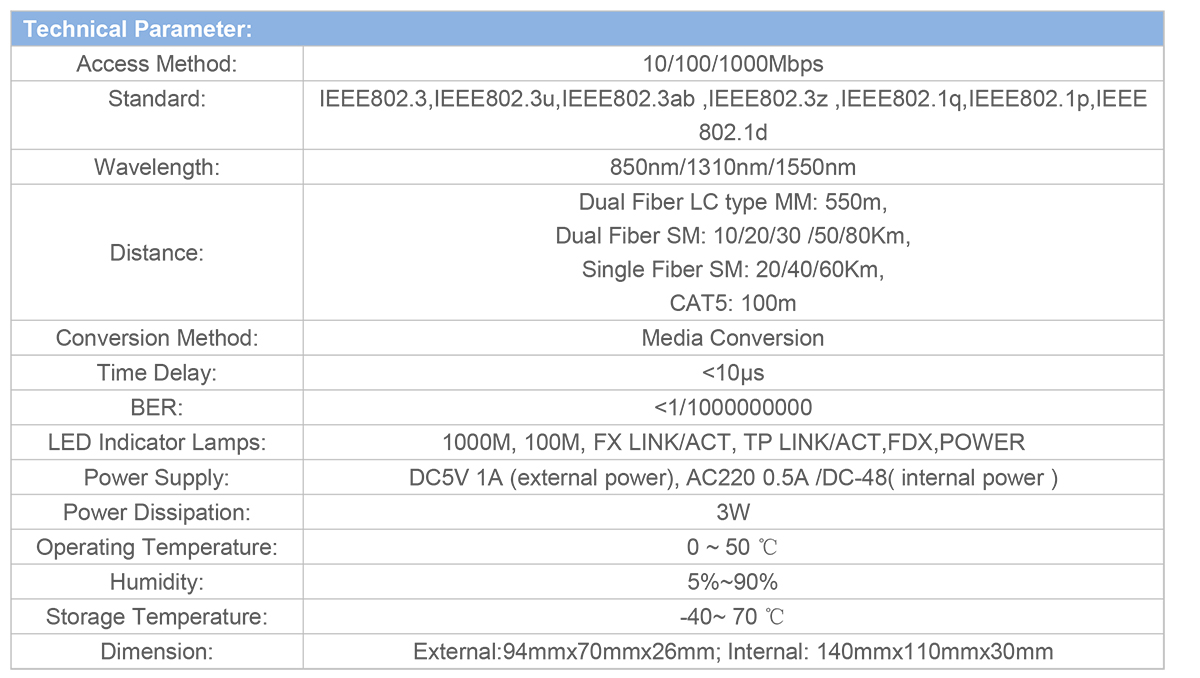

Technical Specification

The 10/100/1000M Media Converter is a network device that is mainly used to convert signals in local area networks (LANs) into signals in wide area networks (WANs) or vice versa. Its working principle is to convert high-speed signals into serial signals at the sending end, transmit them through fiber optic cables or twisted pair cables to the receiving end, and then convert the received serial signals back into high-speed signals. This enables high-speed data transmission between devices.
